Direct product selection: Petrol brushcutters for landscape maintenance

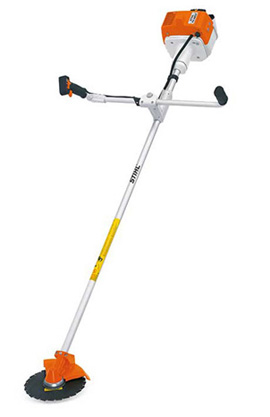

FS 220

General

Powerful clearing saw for working on large areas of tough grass. Anti-vibration system, multi-function handle, bike handle.

Versions



Deviations from the product range and information provided here are possible, depending on the country. STIHL reserves the right to make changes to technical specifications and equipment.

Technical specifications

Technical specifications

Technical specifications Values
Displacement 35,2 cm³
Power output 1,7/2,3 kW/bhp
Weight 1) 7,7 kg
Sound pressure level with plastic tool 2) 98 dB(A)
Sound power level 2) 111 dB(A)
Vibration level, left/right with plastic tool 3) 3,5/3,7 m/s²
Total length 4) 185 cm

1) Weight excluding fuel, cutting tool and guard
2) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
3) K-factor according to DIR 2006/42/EC = 2m / s ²
4) Without cutting tool

Deviations from the product range and information provided here are possible, depending on the country. STIHL reserves the right to make changes to technical specifications and equipment.

Features

Standard equipment

  • STIHL ElastoStart Zoom
    STIHL ElastoStart

    STIHL ElastoStart is a special starter handle which ensures a smooth starting process without any sudden peak forces. The integral damper smooths the power profile that is generated during starting and makes the starting process a lot easier.

  • ADVANCE Universal Harness Zoom
    ADVANCE Universal Harness

    Soft padding makes work more comfortable during longer jobs.

  • Anti-vibration system Zoom
    Anti-vibration system

    Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine's engine are dampened which significantly reduces vibrations at the handles.

  • Multi-function control handle Zoom
    Multi-function control handle

    Easy, comfortable thumb-operated control means the operator's hand never leaves the handle.

  • Bike handle Zoom
    Bike handle

    When used in conjunction with a harness, the bike handle enables a smooth mowing action. The bike handle allows the machine to be easily guided, making it ideal for working on large areas and thus reducing fatigue.

  • Manual fuel pump (Purger) Zoom
    Manual fuel pump (Purger)

    A small fuel pump delivers fuel to the carburettor at the touch of a button. This reduces the number of starting strokes required following extended breaks in operations.

  • Compensator Zoom
    Compensator

    This controller in the carburettor prevents the fuel-air mixture getting richer as the air filter becomes clogged. The correct quantity of fuel is delivered to the carburettor depending on the quantity of air passing through the air filter. This keeps the fuel/air ratio in the combustion mixture constant and hence also the engine power. The filter doesn't need to be cleaned until an appreciable drop in power occurs.

  • Goggles Zoom
    Goggles

    It is important to protect your eyes from flying particles and harmful UV radiation. Therefore a pair of safety goggles/glasses are supplied with the the machine. Note: Additional face protection must be worn when working with brushcutters.

Deviations from the product range and information provided here are possible, depending on the country. STIHL reserves the right to make changes to technical specifications and equipment.

Accessories

Accessories

    • ADVANCE X-TREEm forestry harness Zoom
      ADVANCE X-TREEm forestry harness

      Offering outstanding ergonomic design, specially developed for long periods of forestry work using circular saws. Highly comfortable to wear due to the length-adjustable back section and infinitely variable load distribution between the shoulders and hips, for FS 89 – FS 560, and FSA 90.
