Direct product selection: Cordless power systems blower

BGA 200, tool only

Powerful cordless blower with high blowing force

General

The new BGA 200 is a powerful new cordless blower with high blowing force (21 N) and high air speed (84 m/s) for professional clearing jobs. The 21 N blowing force on this cordless model is now between the BR 350 (17 N) and BR 450 C-EF (26 N), providing ample blowing power for a professional user. Its low noise means no ear defenders required during us. It is also very flexible in the way it can be used; hand-held when in narrow areas or utilise the new comfort carrying system for larger areas where it hooks onto a hip adaptor for a carrying system. It also features cruise control and quick blower tube adjustment via a quick release clasp.

Versions



Deviations from the product range and information provided here are possible, depending on the country. STIHL reserves the right to make changes to technical specifications and equipment.

Technical specifications

BGA 200

Technical specifications

Technical specifications Value
Rated voltage 36 V
Blowing force 1) 21 N
Max. airspeed 84 m/s
Air throughput 2) 940 m³/h
Sound pressure level 3) 80 dB(A)
Sound power level 3) 91 dB(A)
Vibration level right 4) 0,7 m/s²
Working hours per battery charge with AP 100 5) up to 24/up to 10/up to 6/up to 6 min
Working hours per battery charge with AP 200 5) up to 49/up to 21/up to 11/up to 7 min
Working hours per battery charge with AP 300 5) up to 78/up to 32/up to 17/up to 12 min
Working hours per battery charge with AP 300 S 5) up to 95/up to 38/up to 20/up to 14 min
Working hours per battery charge with AR 1000 5) up to 212/up to 87/up to 45/up to 32 min
Working hours per battery charge with AR 2000 5) up to 295/up to 121/up to 63/up to 43 min
Working hours per battery charge with AR 3000 5) up to 376/up to 154/up to 81/up to 60 min
Working hours per battery charge with AR 2000 L 5) up to 315/up to 146/up to 76/up to 53 min
Working hours per battery charge with AR 3000 L 5) up to 500/up to 220/up to 117/up to 85 min
Battery technology Lithium-Ion AP-System
Recommended battery AR 3.000, AR 3.000 L

1) Combination of airspeed and air throughput
2) With round nozzle
3) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
4) K-factor according to DIR 2006/42/EC = 2m / s ²
5) Level 1/level 2/level 3/boost

Deviations from the product range and information provided here are possible, depending on the country. STIHL reserves the right to make changes to technical specifications and equipment.

Features

BGA 200

Standard equipment

  • 2-in-1 working modes Zoom
    2-in-1 working modes

    The BGA 200 is flexible to use thanks to two working modes. Handheld mode is ideal in tight or narrow areas. In the suspended mode with the standard comfort carrying system, large areas can be comfortably cleaned even during all-day work.

  • Second handle Zoom
    Second handle

    Ensures an increase in working comfort by changing the working position. It is ideal when used with the comfort carrying system.

  • Lock mode Zoom
    Lock mode

    Allows you to lock any desired level of blowing speed at the push of a button. It is ideal when used with the comfort carrying system and the second handle.

  • Quick adjustment of the blowpipe Zoom
    Quick adjustment of the blowpipe

    The BGA 200 has a quick adjustment of the blowpipe at the push of a button. For example, the blowpipe can be shortened in no time for use in narrow work areas - and can then be extended again just as quickly and easily. This enables comfortable work with high efficiency in all cleaning situations.

  • Wrist-relief
    Wrist-relief

    Due to the curved shape, the device does not "tip" away during blowing. Even in the boost mode, there are no torsional forces in the wrist. This ensures wrist-friendly, comfortable work.

  • Central control unit Zoom
    Central control unit

    For maximum energy efficiency, the output can be adapted to the respective task via three output levels. The respective power level is indicated by illuminated LEDs.

  • Boost function Zoom
    Boost function

    By overpressing the switch lever, the maximum blowing force is available regardless of the preselected power level. The hand position does not have to be changed.

  • Hanging loop Zoom
    Hanging loop

    There is a hanging opening in the handle housing, where you can hang the device securely on the wall.

Retrofitted equipment

  • Comfort carrying system Zoom
    Comfort carrying system

    Thanks to the comfort carrying system, the BGA 200 can be used in different ways - hand-carried or hooked into the holder positioned on the side of the body. The change is easy and takes seconds and the workload is enormously easier - especially for longer assignments.

Deviations from the product range and information provided here are possible, depending on the country. STIHL reserves the right to make changes to technical specifications and equipment.

Accessories

BGA 200

Accessories

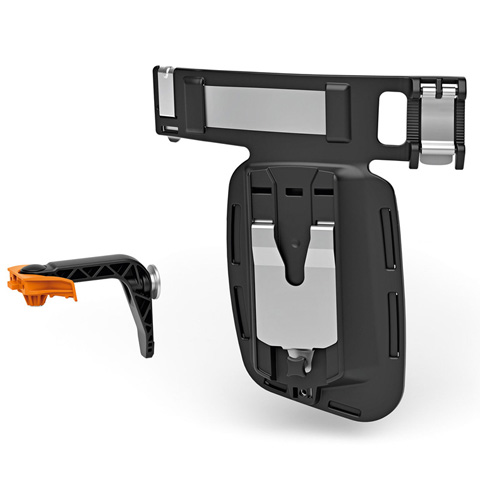

    • Comfort Carrying System for the BGA 200 Zoom
      Comfort Carrying System for the BGA 200

      The comfort carrying system enables the BGA 200 to be used in different ways – either hand-held or hooked into a slot on the side of the user's body. These two modes can be switched between easily and incredibly rapidly, making your work so much easier – particularly during longer periods of use. The comfort carrying system is secured to the belt of an AR backpack battery.

    Versions

    • Carrying system for ARL Zoom
      Carrying system for ARL

      Carrying system for toolfree attachment of AR 2000 L and AR 3000 L.With 3-setting length-adjustable shoulder straps for individual size adjustment, and flexible hip belt for ergonomic working. Power is transferred in combination with the connecting cable and, as an optional extra, the AP adapter.

    Versions

    • Connecting cable for AR L batteries Zoom
      Connecting cable for AR L batteries

      For power transfer when charging the AR L battery and when operating the cordless power tools. Can be combined with the AR carrying system and support cushion set. Cable length: 180 cm.

    Versions

    • AP carrying system Zoom
      AP carrying system

      Convenient, lightweight carrying system for up to two AP batteries. Can be used in combination with an AP holster with a connecting cable – as an alternative to the AR backpack batteries. Suitable for housing with a connecting cable and tools with a battery slot.

    Versions

    • AL 101 charger Zoom
      AL 101 charger

      230 V. Compatible with STIHL AK and AP batteries. With charge-level indicator (LED). Cable tie with Velcro tape. Wall-mounting possible.

    Technical specifications Value
    Charging current 1,6 A
    Power output 0,1 kW
    Charging time AK 10 1) 95 min
    Charging time AK 20 1) 180 min
    Weight 0,7 kg

    1) Up to 100 % capacity

    Versions

    • AL 300 quick charger Zoom
      AL 300 quick charger

      AL 300 quick charger 230 V. For STIHL AP and AR batteries. Device in housing base for wall mounting and cable rewind, with operating mode indicator (LED) and active battery cooling.

    Technical specifications Value
    Rated voltage 220-240 V
    Power output 0,3 kW
    Weight 2,6 Pounds
    Weight 1,2 kg
    Rated current 2,3 A
    Charging current 6,5 A

    Versions

    • AL 500 hi-speed charger Zoom
      AL 500 hi-speed charger

      230 V. For shorter charging times, for STIHL AK, AP and AR batteries. Mechanism in housing base for wall-mounting and cable rewind, with operating mode indicator (LED) and active battery cooling.

    Technical specifications Value
    Rated current 2,6 A
    Charging current 12 A
    Weight 1,3 kg
    Weight 2,9 Pounds
    Power output 0,6 kW
    Rated voltage 220-240 V

    Versions

Deviations from the product range and information provided here are possible, depending on the country. STIHL reserves the right to make changes to technical specifications and equipment.

Battery

BGA 200

Battery

    • AR 1000 backpack battery Zoom
      AR 1000 backpack battery

      Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 626 Wh battery energy, weight 5.5 kg.

    Technical specifications Value
    Rated voltage 36 V
    Battery cell technology LITHIUM-ION

    Versions

    • AR 2000 backpack battery Zoom
      AR 2000 backpack battery

      Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 916 Wh battery energy, weight 7.8 kg.

    Technical specifications Value
    Rated voltage 36 V
    Battery cell technology LITHIUM-ION PRO
    Battery life BGA 100 (Step 2) 1) 80 min

    1) Battery life times are approximate and may vary depending on application

    Versions

    • AR 2000 L backpack battery Zoom
      AR 2000 L backpack battery

      Backpack lithium-ion batteries with 1000 Wh capacities for long battery life. USB connection, and Bluetooth® interface for connection with STIHL connected. Sturdy housing with integrated carry handle and charge-level indicator (six LEDs). Can be directly connected with RMA 765 V. In combination with the AR L carrying system and AR L connecting cable, suitable for tools with a socket and in combination with an AP adapter for tools with a battery slot. Can be used in the rain. Excluding connecting cable, AP adapter and harness.

    Technical specifications Value
    Rated voltage 36 V
    Battery cell technology LITHIUM-ION

    Versions

    • AR 3000 backpack battery Zoom
      AR 3000 backpack battery

      Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 1,148 Wh battery energy, weight 6.8 kg excluding / 8,1 kg including carrying system. With rain protection.

    Technical specifications Value
    Rated voltage 36 V
    Battery cell technology LITHIUM-ION
    Battery life BGA 100 (Step 2) 1) 160 min

    1) Battery life times are approximate and may vary depending on application

    Versions

    • AR 3000 L backpack battery Zoom
      AR 3000 L backpack battery

      Backpack lithium-ion batteries with 1500 Wh capacities for long battery life. USB connection, and Bluetooth® interface for connection with STIHL connected. Sturdy housing with integrated carry handle and charge-level indicator (six LEDs). Can be directly connected with RMA 765 V. In combination with the AR L carrying system and AR L connecting cable, suitable for tools with a socket and in combination with an AP adapter for tools with a battery slot. Can be used in the rain. Excluding connecting cable, AP adapter and harness.

    Technical specifications Value
    Battery cell technology LITHIUM-ION
    Rated voltage 36 V

    Versions

    • AP 100 Zoom
      AP 100

      Compatible with the STIHL cordless power system. Light weight 36v Lithium-Ion battery with charge level indicator (four LEDs). 94 Wh battery energy, weight 0.8 kg.

    Technical specifications Value
    Battery weight 0,9 kg
    Rated voltage 36 V
    Energy content 1) 94 Wh
    Battery cell technology LITHIUM-ION

    1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life

    Versions

    • AP 200 Zoom
      AP 200

      Compatible with the STIHL cordless power system. Light weight 36v Lithium-Ion battery with charge level indicator (four LEDs). 187 Wh battery energy, weight 1,3 kg.

    Technical specifications Value
    Battery weight 1,3 kg
    Rated voltage 36 V
    Energy content 1) 187 Wh
    Battery cell technology LITHIUM-ION

    1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life

    Versions

    • AP 300 Zoom
      AP 300

      Very powerful lithium-ion batteries with charge level indicator (four LEDs). 227 Wh battery power.

    Technical specifications Value
    Battery weight 1,8 kg
    Rated voltage 36 V
    Energy content 1) 227 Wh
    Battery cell technology LITHIUM-ION

    1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life

    Versions

    • AP 300 S Zoom
      AP 300 S

      Very powerful lithium-ion batteries with charge level indicator (four LEDs). 281 Wh battery power.

    Technical specifications Value
    Battery weight 1,8 kg
    Rated voltage 36 V
    Energy content 1) 281 Wh
    Battery cell technology LITHIUM-ION

    1) Power capacity according to the specifications of the cell manufacturer. The actual power capacity available during operation is lower, to increase service life

    Versions

Deviations from the product range and information provided here are possible, depending on the country. STIHL reserves the right to make changes to technical specifications and equipment.

Documents

Owners manuals and safety brochures

Languages Date Link
bg / cs / de / hu / pl / ro 10.03.2020
