Selection Special harvesters

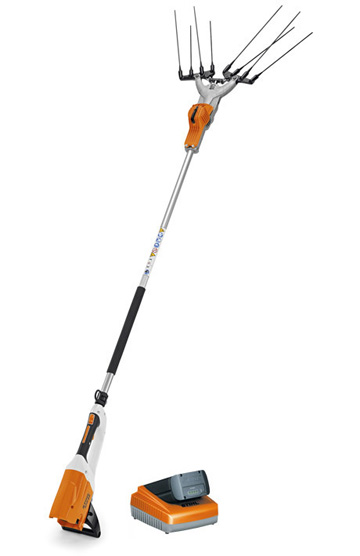

SPA 65 with AP 300 and AL 300

General

SPA 65

Cordless special harvester with adjustable progressive computing speed and dustproof transmission unit for a long life. EC electric motor and transmission, lifting eye for single shoulder strap as carrying aid, hose handle on the shaft, ideally combined with AR 900 for all-day work, total length 225 cm, weight 3.2 kg. With AP 300 and AL 300.

Versions


The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Technical data

SPA 65 with AP 300 and AL 300

Technical data

Weight without battery 3,3 kg
Vibration value, left 1) 2,5 m/s2
Vibration value, right 1) 2,5 m/s2
Sound pressure level 2) 84 dB(A)
Sound power level 3) 95 dB(A)
Battery running time AP 160 4) up to 115 min
Battery running time AP 200 4) up to 100 min
Battery running time AP 300 4) up to 150 min
Battery running time AR 3000 4) up to750 min

1) K-factor according to DIR 2006/42/EC = 2m / s ²
2) K-factor according to DIR 2006/42/EC = 2.5 (dB (A))
3) K-factor according to DIR 2006/42/EC = 2.5 dB (A)
4) Running times are approximate and may vary depending on application

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Features

SPA 65 with AP 300 and AL 300

Standard features

  • Gear lever Zoom
    Gear lever

    The computing speed can be continuously adjusted during harvesting on the shift lever.

  • STIHL EC-Motor Zoom
    STIHL EC-Motor

    The maintenance-free brushless EC motor ensures a longer run time in operation and increased life expectancy. Controlling the motor with the new STIHL EC-electronics, which stresses such as recognizes through thick branches and the engine speed readjusts that the stroke rate remains constant during the cut. Optimized gear with overload protection for added durability. (Similar to illustration)

  • AP 300 battery Zoom
    AP 300 battery

    Powerful 36V lithium-ion battery, providing an output of 227 Wh. The AP 300 battery can be used to power any STIHL or VIKING cordless tool (excluding HSA 25 shrub shears). With charge level indication (LED). Compatible with the AL 100 standard charger, AL 300 quick charger and AL 500 hi-speed charger.

  • Computational principle Zoom
    Computational principle

    Two rakes with four staggered Carbon fingers. With a large aperture range for best harvest efficiency. The Carbon fingers are easy to change.

  • AL 300 quick charger Zoom
    AL 300 quick charger

    Durable quick charger AL 300, with status indicator.

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Accessories

SPA 65 with AP 300 and AL 300

Accessories

    • AL 100 standard charger Zoom
      AL 100 standard charger

      Standard charger for STIHL Lithium-ion batteries with operating mode indicator. 230 V, 50 Hz.

    Technical data
    Battery voltage 36 V
    Weight 0,72 kg
    Power output 0.1 kW
    Weight 0.72 kg
    Charging current 1.6 A

    Versions

    • AL 300 quick charger Zoom
      AL 300 quick charger

      AL 300 quick charger 230 V. For STIHL AP and AR batteries. Device in housing base for wall mounting and cable rewind, with operating mode indicator (LED) and active battery cooling.

    Technical data
    Mains voltage 220-240/50 V/Hz
    Battery voltage 36 V
    Weight 1,2 kg
    Charging current 6,5 A
    Charging time AP 80 50 min
    Charging time AP 115 55 min
    Charging time AP 120 60 min
    Charging time AP 160 60 min
    Charging time AP 180 70 min
    Charging time AR 900 250 min
    Charging time AP 100 1) 50 min
    Charging time AP 200 1) 55 min
    Charging time AP 300 1) 75 min
    Charging time AR 3000 1) 300 min

    1) Up to 100 % capacity

    Versions

    • AL 500 hi-speed charger Zoom
      AL 500 hi-speed charger

      Hi-speed charger for STIHL professional lithium-ion batteries, the AP 180 and AR 900. The AL 500 takes 30 minutes to provide 100% charge for the AP 180 battery and 130 minutes for 100% charge for the AR 900 battery. The AL 500 can be wall mounted for convenient storage.

    Technical data
    Mains voltage 220-240/50 V/Hz
    Battery voltage 36 V
    Weight 1,3 kg
    Charging current 12 A
    Charging time AP 80 50 min
    Charging time AP 115 25 min
    Charging time AP 120 60 min
    Charging time AP 160 60 min
    Charging time AP 180 25 min
    Charging time AR 900 130 min
    Charging time AP 100 1) 35 min
    Charging time AP 200 1) 35 min
    Charging time AP 300 1) 35 min
    Charging time AR 3000 1) 160 min

    1) Up to 100 % capacity

    Versions

    • Carrying system Battery belt Zoom
      Carrying system Battery belt

      Durable and ergonomically shaped belt with battery bag for carrying STIHL AP batteries. The battery is worn on the battery belt, reducing the total weight in your hands. Energy is transferred from the battery in the bag to the tool via a flexible cable and the lightweight AP adapter.

    Versions

    • Battery boxes for four batteries or two batteries Zoom
      Battery boxes for four batteries or two batteries

      A space-saving and safe way to transport batteries and battery charger. Compatible with Sortimo L-BOXX and Sortimo Globelyst in-vehicle system. For four batteries or two batteries and a charger.

    Versions

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.

Battery

SPA 65 with AP 300 and AL 300

Battery

    • AP 100 battery Zoom
      AP 100 battery

      Compatible with the STIHL cordless power system. Very powerful lithium-ion batteries with charge level indicator (four LEDs). Available with different energy capacities. 76 Wh battery energy, weight 0.8 kg.

    Technical data
    Weight 0,8 kg
    Energy content 76 Wh
    Battery cell technology LITHIUM-ION PRO
    Battery life MSA 160 C-BQ 1) 17 min
    Battery life MSA 200 C-BQ 1) 15 min
    Battery life HTA 65 1) 17 min
    Battery life FSA 65 1) 30 min
    Battery life FSA 85 1) 15 min
    Battery life FSA 90 1) 15 min
    Battery life FSA 90 R 1) 10 min
    Battery life HSA 66 1) 60 min
    Battery life HSA 86 1) 60 min
    Battery life HLA 65 1) 60 min
    Battery life HLA 85 1) 60 min
    Battery life BGA 85 1) 8 min
    Battery life BGA 100 (Step 2) 2) 11 min
    Battery life TSA 230 1) 6 min
    Battery life ASA 85 1) 200 min

    1) Battery life times depend on the conditions of use and may vary
    2) Laufzeiten sind Anhaltswerte und können je nach Anwendung variieren

    Versions

    • AP 200 battery Zoom
      AP 200 battery

      Compatible with the STIHL cordless power system. Very powerful lithium-ion batteries with charge level indicator (four LEDs). Available with different energy capacities. 151 Wh battery energy, 1.3 kg.

    Technical data
    Weight 1,3 kg
    Energy content 151 Wh
    Battery cell technology LITHIUM-ION PRO
    Battery life MSA 160 C-BQ 1) 35 min
    Battery life MSA 200 C-BQ 1) 30 min
    Battery life HTA 65 1) 35 min
    Battery life FSA 65 1) 60 min
    Battery life FSA 85 1) 30 min
    Battery life FSA 90 1) 30 min
    Battery life FSA 90 R 1) 20 min
    Battery life HSA 66 1) 120 min
    Battery life HSA 86 1) 120 min
    Battery life HLA 65 1) 120 min
    Battery life HLA 85 1) 120 min
    Battery life BGA 85 1) 16 min
    Battery life BGA 100 (Step 2) 2) 22 min
    Battery life TSA 230 1) 12 min
    Battery life ASA 85 1) 400 min

    1) Battery life times depend on the conditions of use and may vary
    2) Laufzeiten sind Anhaltswerte und können je nach Anwendung variieren

    Versions

    • AP 300 Battery Zoom
      AP 300 Battery

      Compatible with the STIHL cordless power system. Very powerful lithium-ion batteries with charge level indicator (four LEDs). Available with different energy capacities. 227 Wh battery energy, weight 1,7 kg.

    Technical data
    Battery voltage 36 V
    Weight 1,7 kg
    Energy content 227 Wh
    Battery cell technology LITHIUM-ION PRO
    Battery life MSA 160 C-BQ 1) 50 min
    Battery life MSA 200 C-BQ 1) 45 min
    Battery life HTA 65 1) 50 min
    Battery life FSA 65 1) 90 min
    Battery life FSA 85 1) 45 min
    Battery life FSA 90 1) 45 min
    Battery life FSA 90 R 1) 30 min
    Battery life HSA 66 1) 180 min
    Battery life HSA 86 1) 180 min
    Battery life HLA 65 1) 180 min
    Battery life HLA 85 1) 180 min
    Battery life BGA 85 1) 24 min
    Battery life BGA 100 (Step 2) 2) 33 min
    Battery life TSA 230 1) 18 min
    Battery life ASA 85 1) 600 min

    1) Battery life times depend on the conditions of use and may vary
    2) Laufzeiten sind Anhaltswerte und können je nach Anwendung variieren

    Versions

    • AR 2000 backpack battery Zoom
      AR 2000 backpack battery

      Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 916 Wh battery energy, weight 7.8 kg.

    Technical data
    Battery cell technology LITHIUM-ION PRO
    Battery life MSA 160 C-BQ 1) 180 min
    Battery life MSA 200 C-BQ 1) 160 min
    Battery life HTA 65 1) 180 min
    Battery life FSA 65 1) 330 min
    Battery life FSA 85 1) 160 min
    Battery life HSA 66 1) 660 min
    Battery life HSA 86 1) 660 min
    Battery life HLA 65 1) 660 min
    Battery life HLA 85 1) 660 min
    Battery life BGA 85 1) 90 min
    Battery life BGA 100 (Step 2) 2) 80 min

    1) Battery life times depend on the conditions of use and may vary
    2) Laufzeiten sind Anhaltswerte und können je nach Anwendung variieren

    Versions

    • AR 3000 backpack battery Zoom
      AR 3000 backpack battery

      Backpack lithium-ion batteries with big capacity for longer running times. Sturdy housing with base and charge level indicator (six LEDs), comfortable and ergonomically harness with integrated carry handle and rain protection cover. 1,148 Wh battery energy, weight 6.8 kg excluding / 8,1 kg including carrying system. With rain protection.

    Technical data
    Battery voltage 36 V
    Weight 6,8 kg
    Battery cell technology LITHIUM-ION
    Battery life MSA 160 C-BQ 1) 230 min
    Battery life MSA 200 C-BQ 1) 200 min
    Battery life HTA 65 1) 230 min
    Battery life FSA 65 1) 400 min
    Battery life FSA 85 1) 200 min
    Battery life FSA 90 1) 220 min
    Battery life FSA 90 R 1) 150 min
    Battery life HSA 65 1) 800 min
    Battery life HSA 66 1) 800 min
    Battery life HSA 86 1) 800 min
    Battery life HLA 65 1) 800 min
    Battery life HLA 85 1) 800 min
    Battery life BGA 85 1) 115 min
    Battery life BGA 100 (Step 2) 2) 160 min
    Battery life TSA 230 1) 95 min

    1) Battery life times depend on the conditions of use and may vary
    2) Laufzeiten sind Anhaltswerte und können je nach Anwendung variieren

    Versions

The version(s) available in each country may differ from the above range and specifications; specific details may be subject to change without notice. Please ask your local STIHL Approved Dealer for further information.
